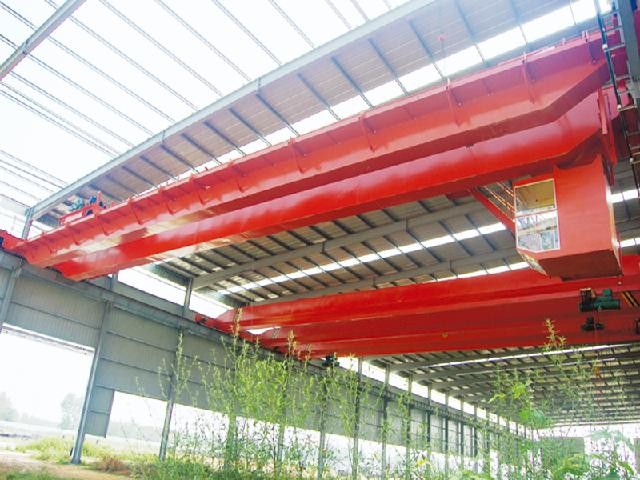

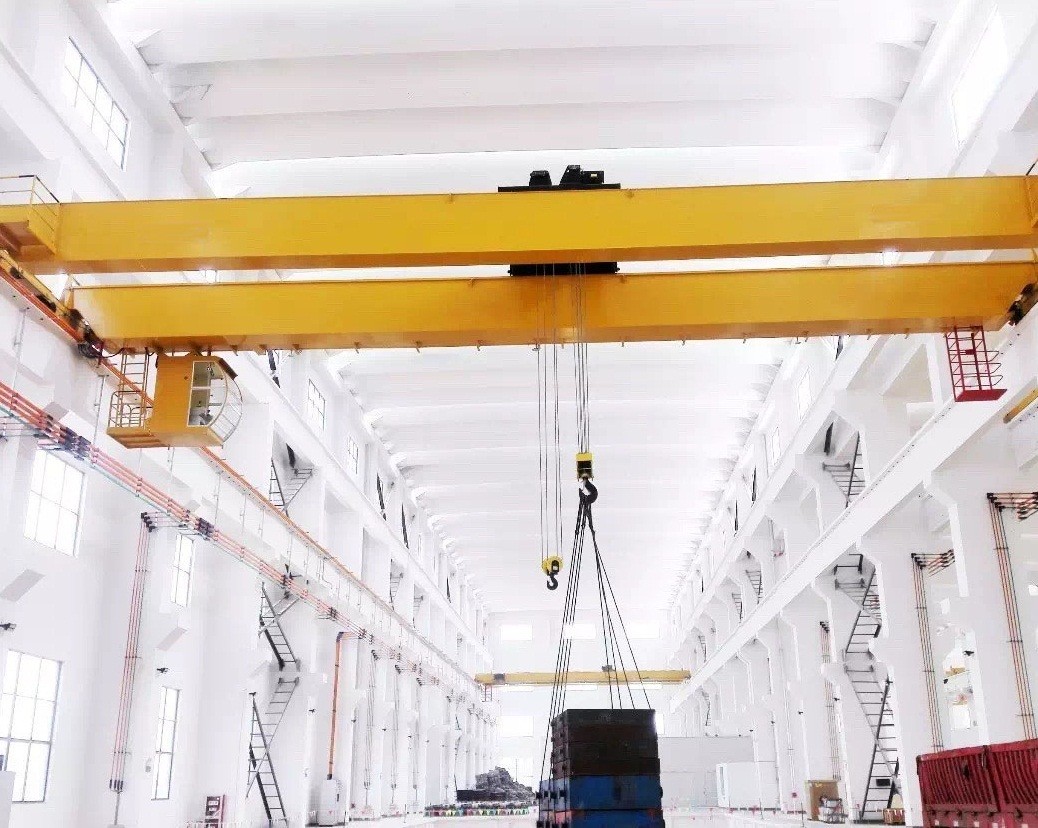

Bridge crane with hook

Bridge crane with hook is a widely used lifting machine, which is mainly composed of box bridge, lifting trolley, crane operation mechanism and electrical controlling system. The pick-up device is a hook.

A track is laid on the main beam for the trolley to move horizontally along it.The main beam is welded with the end beam, and the middle of the end beam is arranged with joints, bolts or pin shafts for the separation and transportation of the bridge.

It can be controlled by handle on the ground, wireless remote controller or driver in the cab. The cab can be open-type or closed type.There are adjustable seats and insulation pads in the cab. Toughened glass is used for the window.  Air conditioner, loudspeakers, two-way radio and other items can be configured according to the different requirements.

The crane can be equipped with motor grab, electromagnetic suckerand other devices to meet the needs of lifting different types of materials.

The working level is A3-A7, and the commonly used lifting capacity is 3 to 250t. It is suitable for loading, unloading and hoisting in factories, warehouses and freight yards where the ambient temperature is -20℃ to 40℃ and the relative humidity is not more than 85%. It is forbidden to work in flammable, explosive or corrosive atmosphere.
