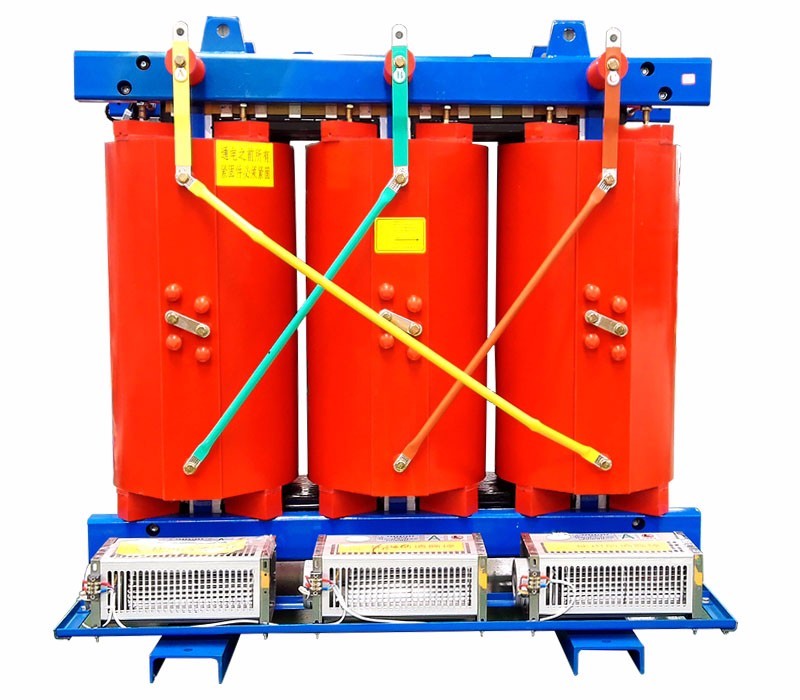

SCB10(11) Dry-type transformer

SCB-10:Dry type

SCB-11:Three-phase resin cast insulation dry type

The coil is sealed by epoxy resin, so it is flame-resistant, fireproof, explosion-proof, maintenance-free, non-polluting, and can be directly installed in the load center. The scientific and reasonable design and pouring process make less partial discharge, lower noise and strong heat dissipation. The product is equipped with intelligent temperature controller, which has the functions of fault alarm, over temperature alarm, over temperature trip and black box. It is connected with computer through RS485 serial interface and can be controlled centrally.
